Vacu-Press® Maxloader 9000

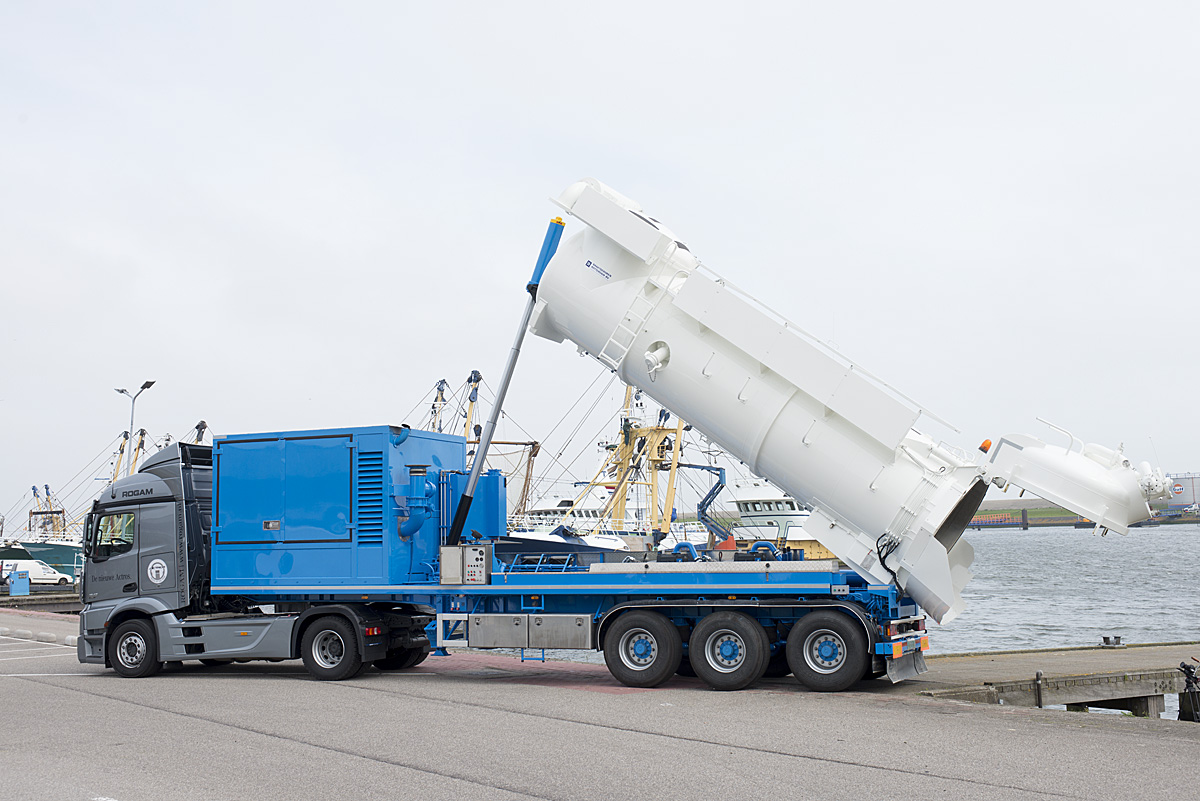

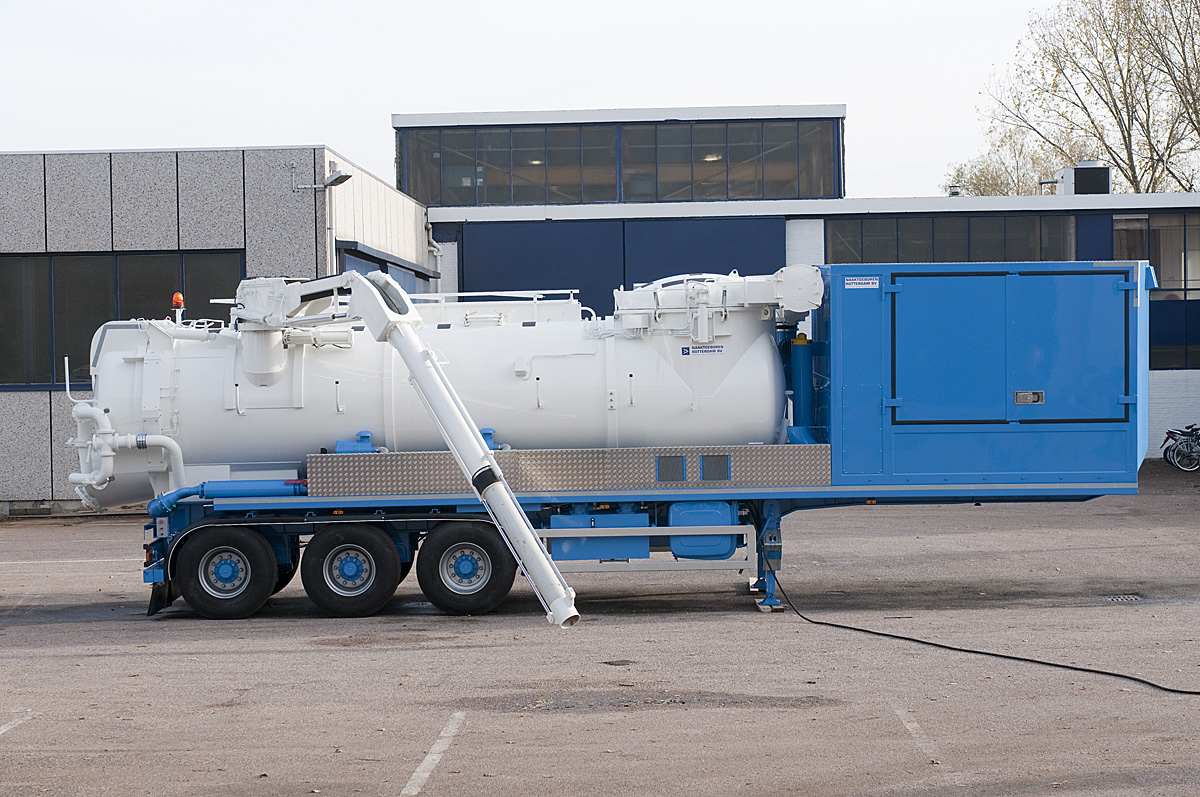

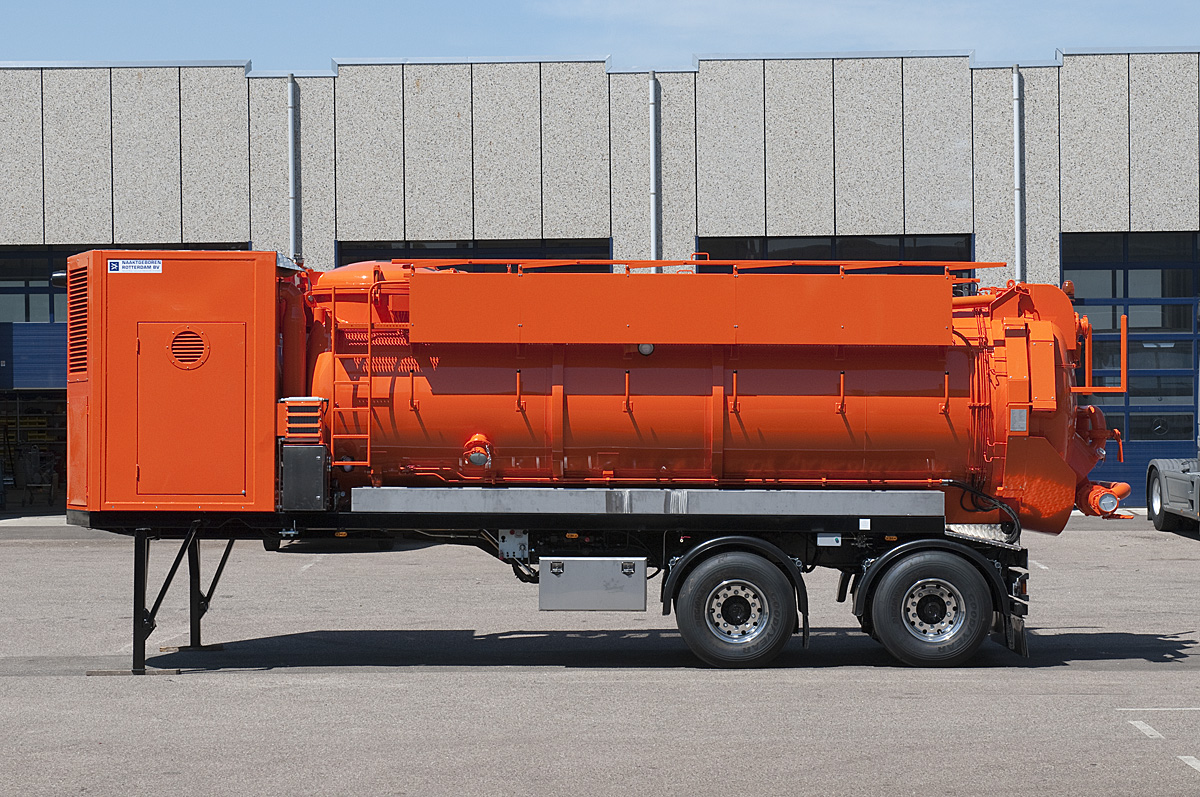

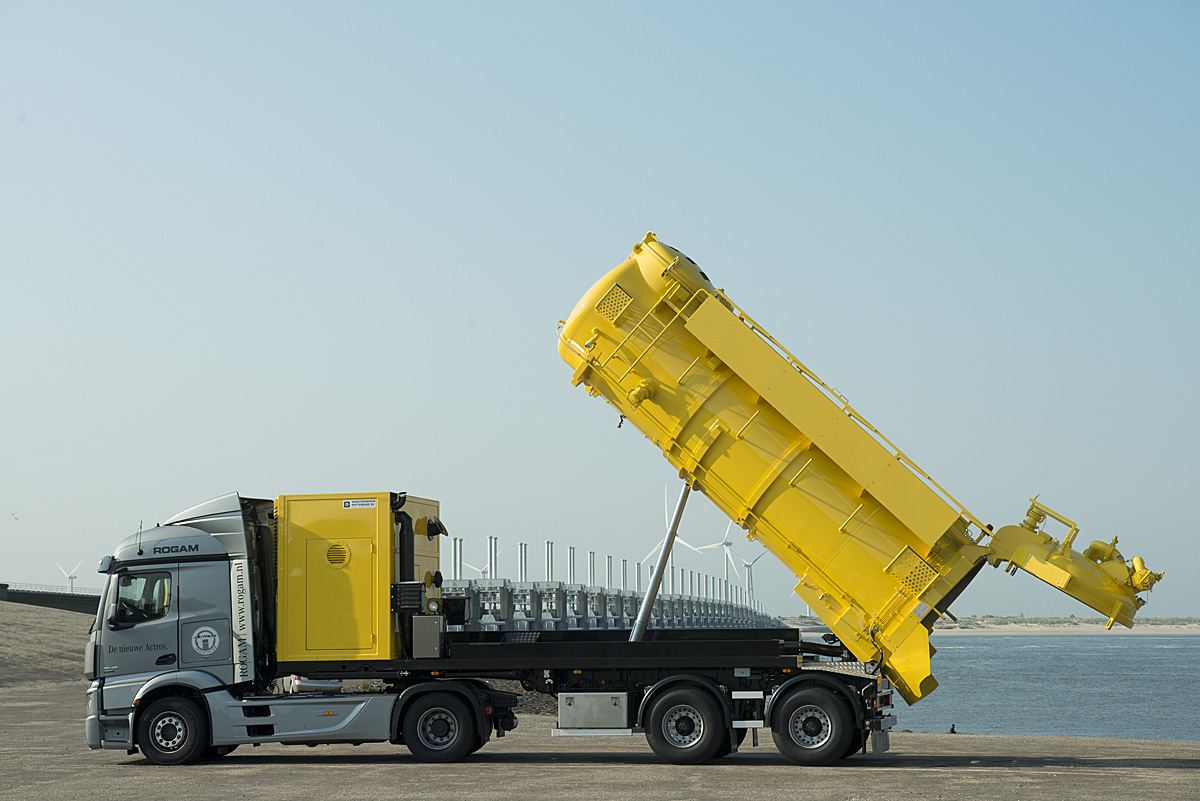

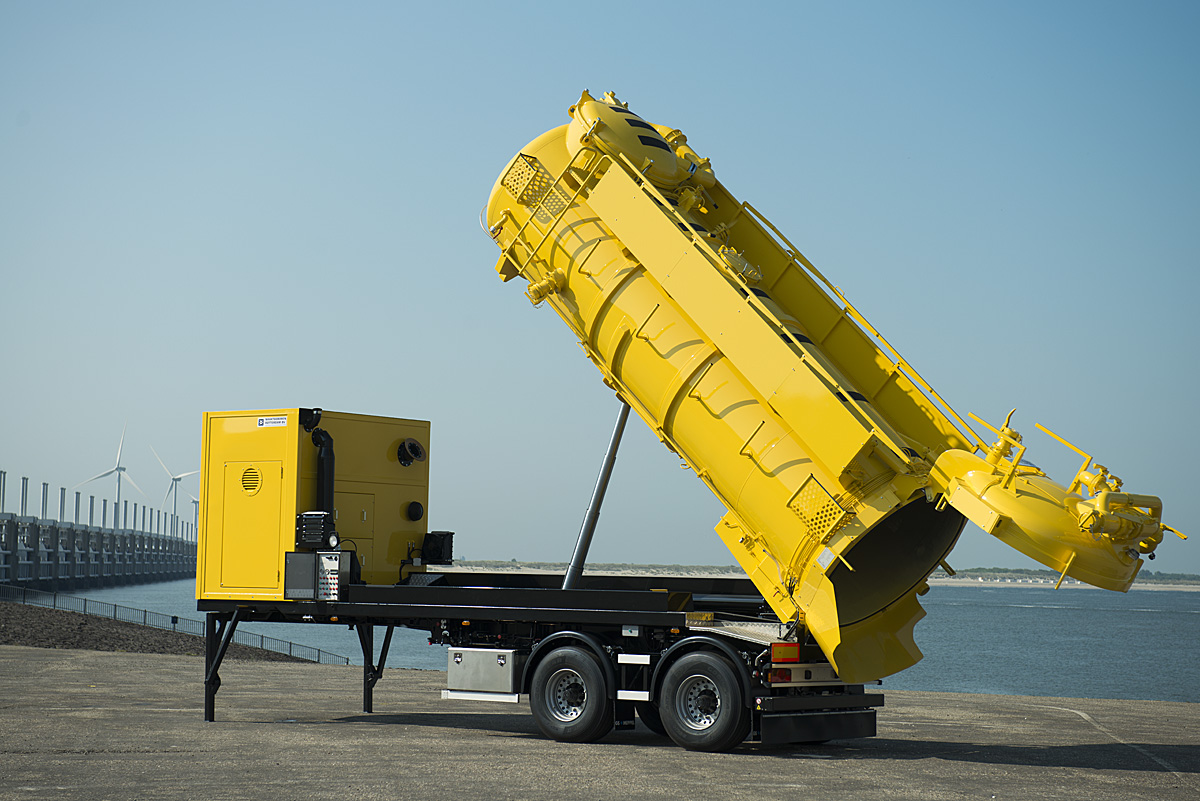

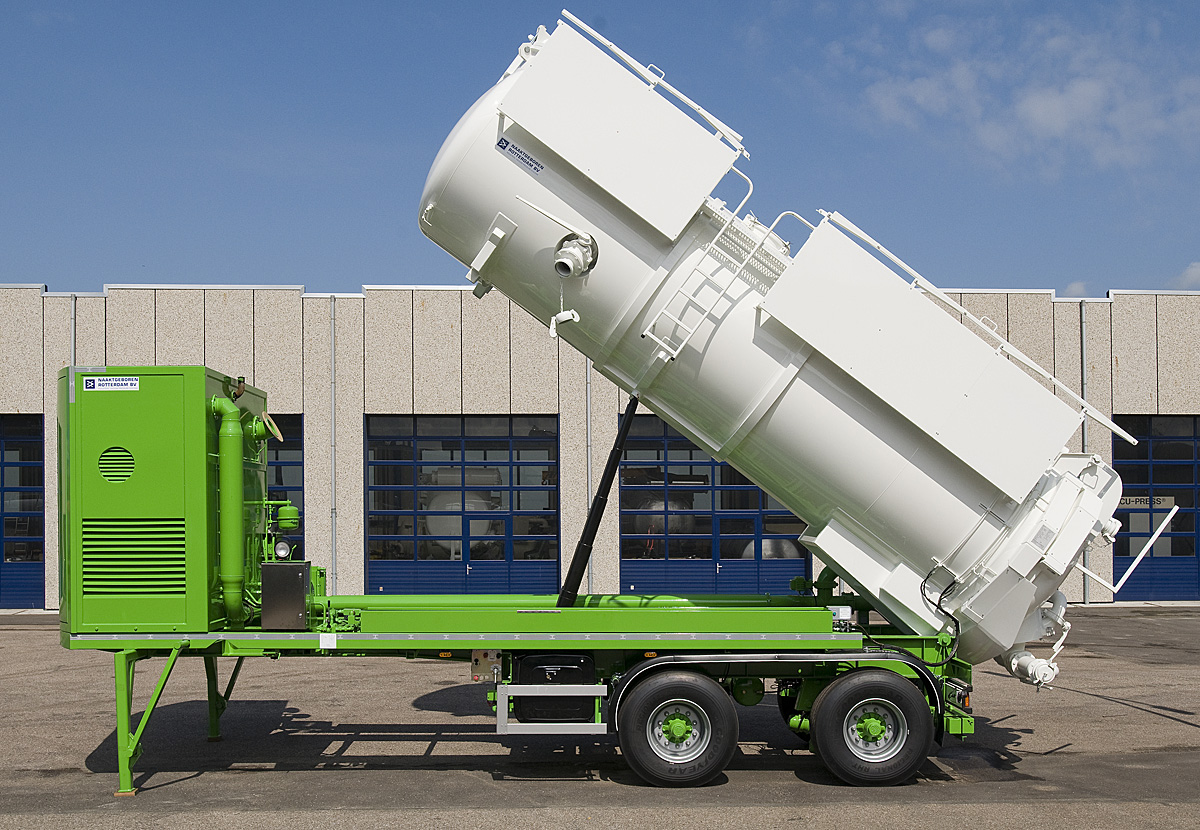

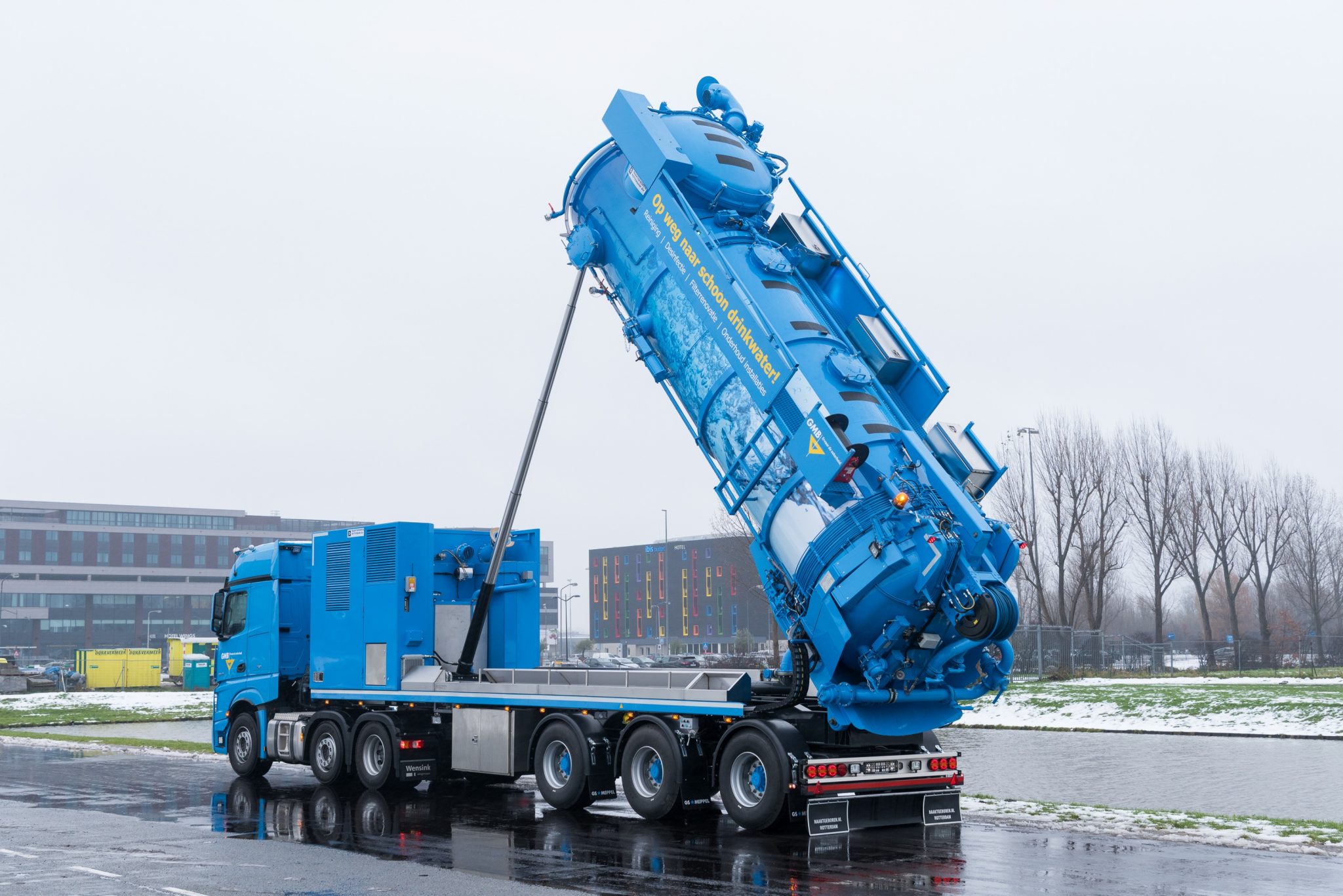

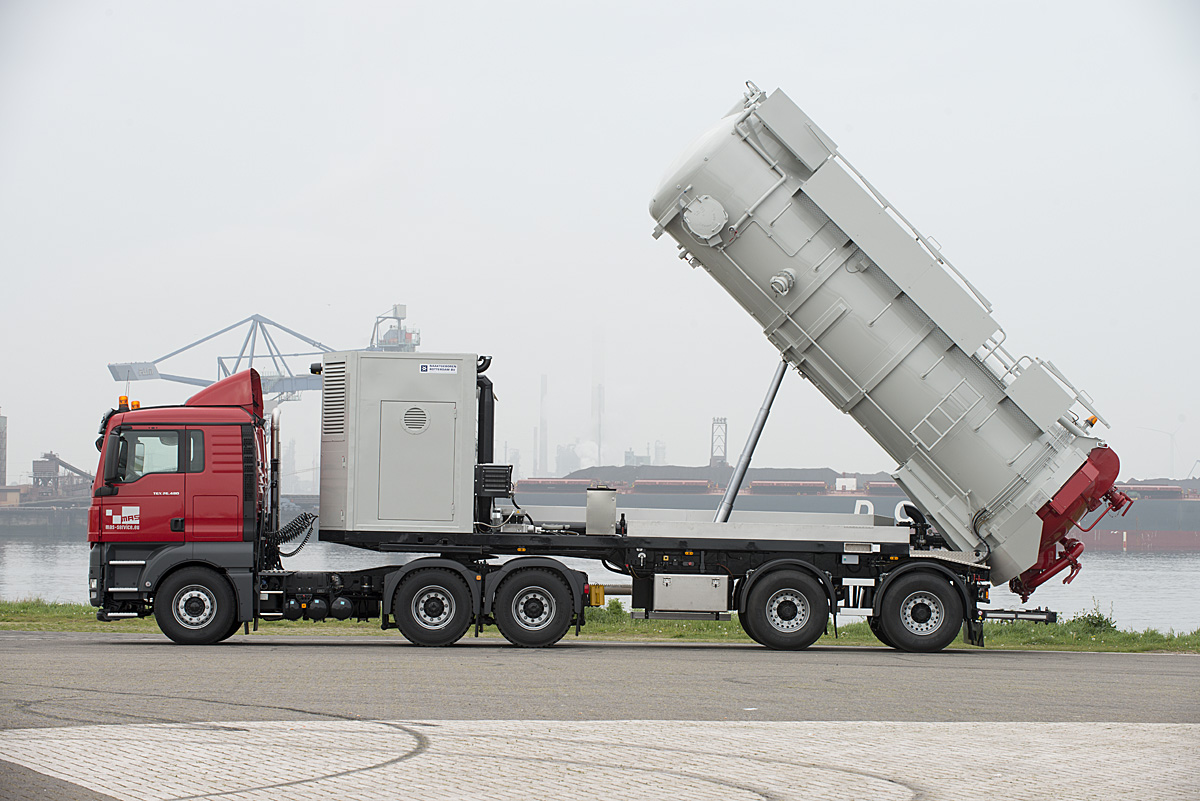

The Vacu-Press trailer is a modern 2- or 3-axle trailer with steered rear axle, especially developed for the suction and blowing of sand, gravel, substrate and fluids.

The Vacu-Press Maxloader is available with an Aerzen blower or screw compressor.

The power is supplied using a Caterpillar/Volvo diesel hydraulic system. The diesel motor speed is constant while the hydraulic motor speed is variable, resulting in an economical fuel consumption.

Specificaties

Vacu-Press® Maxloader 9000

Tank

Stainless steel type-304

Chassis

2 or 3 air-sprung axles, steered rear axle

Engine

Caterpillar/Volvo/Deutz

Pump

Vacu-Press 9000 high vacuum blower. Overpressure 1,2 bar max. Vacuum 0,95 bar.

Filter

Continuous cleaning with compressed air (46 m²)

Safetyfilter

Stainless steel housing including stainless steel plate filter (150 micron)

Driving

Integrated diesel engine with hydraulic or belt drive

Payload

Approx. 17.5 m³

Loaded

Suction or through manhole

Unload

Blowing or tipping
